The Magicball Dry Ice Block Machine YGBJ-100-1 is a compact, powerful and versatile machine producing high quality dry ice 350g-1200g for dry ice requirement. This dry ice machine production capacity is 120-185kg/h (264-407 lbs/h) in the daily working process. (Download PDF)
Dry Ice Block Machine YGBJ-100-1
|
Motor Power(kw) |
7.5 |
Liquid inlet pressure（mpa） |
≤2.1 |
|
Dry Ice Size (mm) |
120*105*(20-60) |
Liquid inlet diameter(mm) |
DN10 |
|
Dry Ice Size (inch) |
5' * 4' * ( 1' - 2' ) |
Exhaust pipe diameter(mm) |
DN50 |
|
Min-Max (kg/h) |
120-185 |
Fuel tankage (l) |
280 |
|
Raw Materials(t/m³) |
≥1.48 |
Overall Dimension(cm) |
140*110*170 |
|
CO²Transformation rate |
40%-43.5% |
Weight(kg/lbs) |
1200/2645 |
If you want large output with this dry ice size, Please Click Here.
Dry Ice Size Recommendation:
● 500g/pcs Length:125mm(5') Width:105mm(4') Height:25mm(1')
● 1kg/pcs Length:125mm(5') Width:105mm(4') Height:50mm(2')
Feature:
★ OMRON PLC and touch screen enable automation and digital production;
★ The stainless steel housing resists long-term corrosion of the condensate;
★ Adopt low noise digital servo control system;
★ Advanced technology makes dry ice conversion rate higher than 42%;
★ The use of cold gas from the exhaust gas to cool the oil temperature greatly reduces energy consumption;

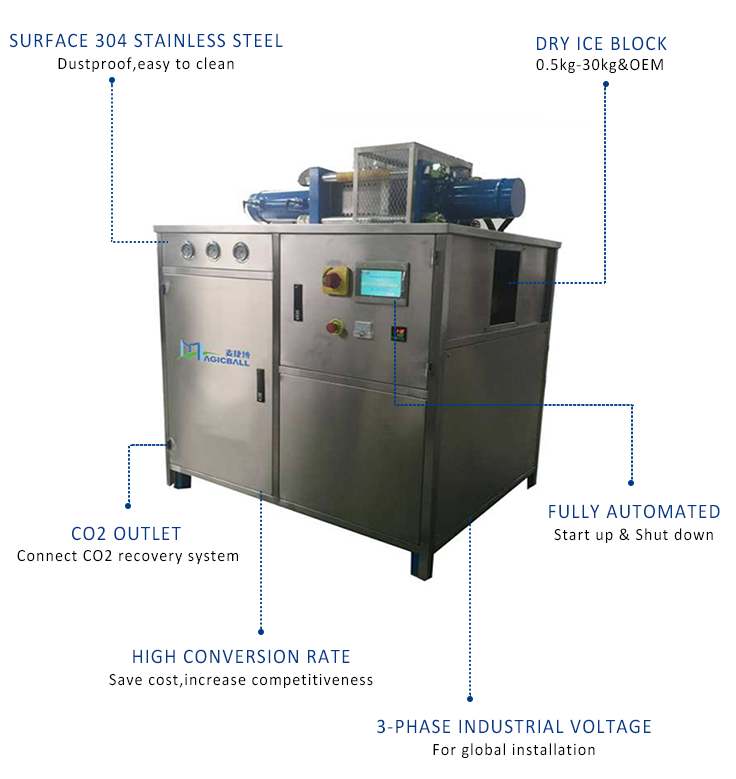

BENEFITS OF DRY
ICE BLOCK MACHINE:
1. 3-Phase industrial voltage: For global
installation
2. Fully automated: Start up & Shut
down
3. Dry ice block:0.5kg-30kg & OEM
4. High transformation rate: LCO2:dry
ice=2.3-2.5 Ton:1 Ton
5. Surface & Mold: 304 Stainless Steel
6. Production Time: Recommend 8-10
hours/day, acceptable 24 hours during peak season.
7. Hydraulic system---Taiwan
Brand PLC---OMRON Brand
Intermediate relays---OMRON
Brand Solenoid valve---DANFOSS Brand
Application:
Low temperature preservation and cold chain transportation, dry ice fog effects and other industries.
We support our customers building up their dry ice business and are pleased to also provide our advice in regards to dry ice blasting machine and dry ice storage container.
