YGQX-750 Dry Ice Blasting Machine

Tip: click the picture to enlarge.

Description

The Magicball YGQX-750 Dry ice blasting machine cleaning with dry ice! This new development is quickly expanding around the world. One system uses small rice size pellets of dry ice shooting them out of a jet nozzle with compressed air. It works some what like sandblasting or high-pressure water or steam blasting, with superior results. The frigid temperature of the dry ice is -78℃.

When the rice-sized pellets are blasted against a surface, they disintegrate and change to carbon dioxide gas. The mould, along with other debris, becomes airborne and later falls to the ground. ( Download PDF )

Dry Ice Blasting Machine YGQX-750

Motor Power(kw)	0.75	With Ice(kg/min)	0-2.0
Dry Ice Size (mm)	1-4	Hooper Capacity(l)	25
Dry Ice Size(inch)	0.1-0.16	Air hose length(m)	9
Voltage(vac)	220	Connector Screw Thread(")	1 "
Air Supply Pressure Range(mpa)	0.5-1.0	Ice Blaster hose Length(m)	7
Air Supply Pressure Range(bar)	5-10	Weight(kg/lbs)	95/209
Air Consumption(m³/min)	3--6	Overall Dimension (cm)	7040100
Air Consumption(cfm)	107-214

If you want to check Blasting Video, Please click here.

Unique features

★ SUS304 materials construction appears beautiful and reliable use

★ Control ice consumption stably by frequency conversion adjusting speed

★ Various spray guns applicable for different cleaning areas

★ Pneumatic vibrator makes ice supply evenly and smoothly

★ 260mm wheels increase machine stability.

Dry Ice Blasting Machine Accessories

Dry Ice Blast Hose

The ice blast hose adopts imported special low-temperature resistant rubber hose, and Oxford protection cover is wrapped in the hose.

Dry Ice Air Hose

The air hose uses a rubber tube with a pressure resistance of 8.0Mpa, which is connected to a dry and clean compressed air source and blasting

machine. Both ends use rotatable connection.

YGQX-PZB001

Standard Nozzle, length is 33cm, Nozzle length is 38mm and width is 4mm.

suitable for most places.

YGQX-PZB002

Standard Nozzle, length is 33cm, Nozzle
length is 70mm and width is 3.5mm. suitable for Suitable for large area blasting.

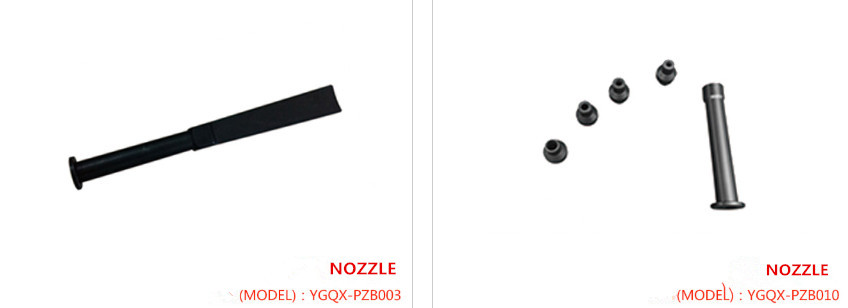

YGQX-PZB003

Lengthen Standard Nozzle, length is 50cm, Nozzle length is 38mm and width is 4mm.

suitable for blasting special area.

YGQX-PZB010

Combined nozzle, length is 25cm,can replaceΦ6、Φ8、Φ12 nozzle.
suitable for special places with small spray volume.

Application:

Dry ice cleaning, low temperature preservation and transportation, smoke effects and other industries.

We support our customers building up their dry ice business and are pleased to also provide our advice in regards to dry ice equipment and dry ice storage container.
