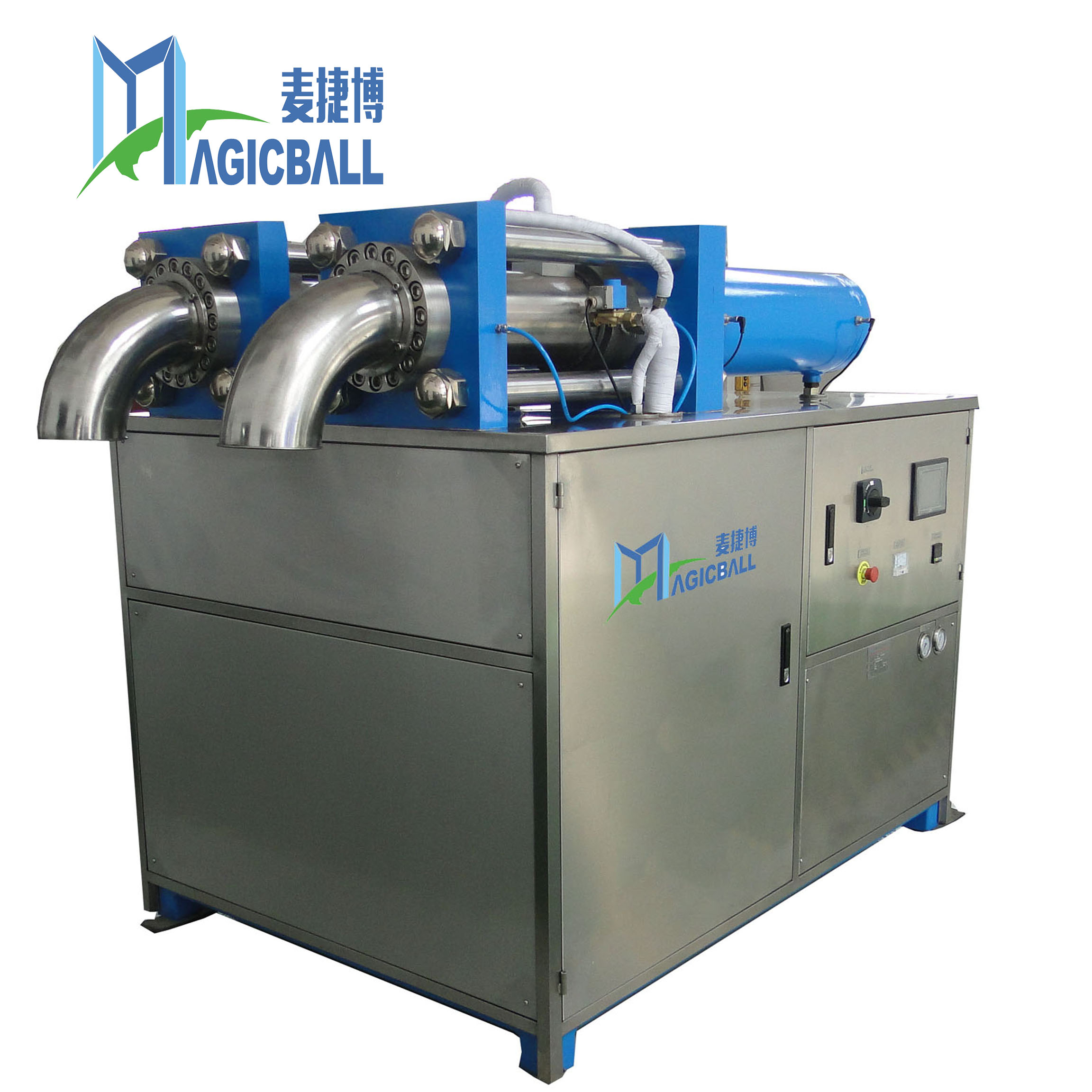

YGBK-300-4 Dry Ice Pelletizer

 Tip: click the picture to enlarge.

The Magicball Dry Ice Pelletizer YGBK-300-4 is a compact, powerful and versatile machine producing high quality dry ice pellets in the sizes 3mm, 6mm, 10mm, 16mm and 19mm (1/8, 1/4, 3/8, 5/8,19/25 in) for a medium-sized dry ice requirement. This dry ice machine production capacity is 900-1080kg/h (1980-2380lbs/h) in the daily working process. ( Download PDF )



Dry Ice Pelletizer YGBK-300-4


 Motor Power(kw)

37

 Liquid inlet pressurempa

2.1

 Dry Ice Size (mm)

3-19

 Liquid inlet diameter(mm)

2- DN20

 Dry Ice Size(inch)

0.1-0.7

 Exhaust pipe diameter (mm)

4-DN70

 Min-Max  (kg/h)

900-1080

 Fuel tankage (l)

600

 Raw Materials(t/m³

1.5

 Overall Dimension(cm)

215*270*175

 CO²Transformation rate

42%

 Weight(kg/lbs)

4800/10580













YGBK-300-4 Production Video, Please Click HERE.




Feature:

★ OMRON PLC and touch screen enable automation and digital production;

★ The stainless steel housing resists long-term corrosion of the condensate;

★ Adopt low noise digital servo control system;

★ Advanced technology makes dry ice conversion rate higher than 42%;

★ The use of cold gas from the exhaust gas to cool the oil temperature greatly reduces energy consumption;




Application:

For low temperature cleaning
For viticulture applications: vat inertia, protected harvest, vat homogenization, mixing, carbonization...
For the agri-food industry: meat processing industry, industrial biscuits...
Road transport: temperature control, medical, veterinary and food transportation.

For entertainment: dry ice fog effect.



Dry Ice Pellet Size:





        3mm (1/8 in )                                  9mm (3/8 in)


       Dry Ice Blasting                              Cooling Purposes







              16mm(5/8 in )                          19mm (19/25 in)


            Cooling Purposes                        Cooling Purposes







BENEFITS OF DRY ICE PELLETIZER MACHINE:

1. 3-Phase industrial voltage: For global installation

2. Fully automated: Start up & Shut down

3. Dry ice pelletizer mold:3mm,9mm,16mm,19mm

4. High transformation rate: LCO2:dry ice=2.3-2.5 Ton:1 Ton

5. Surface & Mold: 304 Stainless Steel

6. Production Time: Recommend 8-10 hours/day, acceptable  24 hours during peak season.

7. Hydraulic system---Taiwan Brand        PLC---OMRON Brand

   Intermediate relays---OMRON Brand    Solenoid valve---DANFOSS Brand





We support our customers building up their dry ice business and are pleased to also provide our advice in regards to dry ice blasting machine and dry ice storage container.
