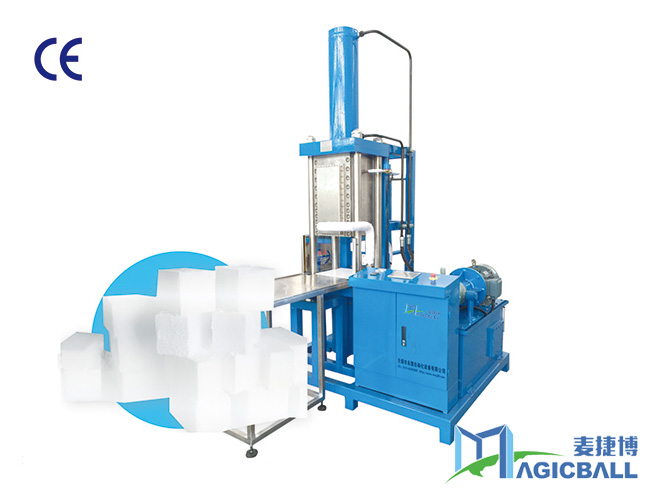

YGBJ-650-1L Dry Ice Block Machine

 Tip: click the picture to enlarge.


The Magicball Dry Ice Block Machine YGBJ-650-1L is a compact, powerful and versatile machine producing high quality dry ice 3kg-30kg for  dry ice requirement. This dry ice machine production capacity is 400-650kg/h (881-1433 lbs/h) in the daily working process. (Download PDF )



Dry Ice Block Machine YGBJ-650-1L



 Motor Power(kw)

11

 Liquid inlet pressure(mpa

2.1

 Dry Ice Size (mm)

300*255*(50-260)

 Liquid inlet diameter(mm)

DN20

 Dry Ice Size(inch)

12*10*(2-10)

 Exhaust pipe diameter(mm)

DN70

 Min-Max  (kg/h)

400-650

 Fuel tankage (l)

320

 Raw Materials(t/m³

1.3-1.52

 Overall Dimension(cm)

250*110*170

 CO²Transformation rate

40%-43.5%

 Weight(kg/lbs)

2600/5720







Feature:

★ OMRON PLC and touch screen enable automation and digital production;

★ The stainless steel housing resists long-term corrosion of the condensate;

★ Adopt low noise digital servo control system;

★ Advanced technology makes dry ice conversion rate higher than 42%;

★ The use of cold gas from the exhaust gas to cool the oil temperature greatly reduces energy consumption;







Application:

Dry ice cleaning, low temperature preservation and transportation, dry ice fog effect and other industries.



Dry Ice Size:











We support our customers building up their dry ice business and are pleased to also provide our advice in regards to dry ice blasting machine and dry ice storage container.
